How should Moriarty receiving activity influence row placement?

Keep storage approaches outside the space needed for truck staging and bundle checks. Along the freight frontage, a clear unloading position should not depend on temporarily blocking access to stored building supplies.

Can full packs and loose lengths share a bay?

Yes, when support, containment, and capacity suit each assigned position. Cantilever rack should not treat a partly emptied bundle as unchanged stock if its remaining pieces no longer contact the intended supports.

Would a side-loader change the layout?

Yes. Its loaded travel and placement movements differ from a conventional forklift's approach. Compare actual equipment dimensions and carried lengths before selecting aisle widths or orienting rows beside receiving.

Can sheet goods stay in an outdoor row?

Possibly, after reviewing bearing, packaging, restraint, and exposure. Wind across an open yard makes loose sheet handling a separate concern from storing a contained bundle of bar or tube.

Cantilever Rack system inside a New Mexico warehouse

Moriarty, New Mexico

Cantilever Rack in Moriarty, NM

Cantilever rack in Moriarty gives receiving teams assigned positions for long bundles instead of leaving stock across the next truck's unloading route. Arms extend from uprights behind the load, eliminating front columns that would otherwise divide access to pipe, lumber, tube, and bar.

For building supply activity near Central Avenue industrial and the I-40 frontage, storage design and truck staging belong together. An open-front row helps only when a forklift can reach it carrying the intended length. Turning space, temporary pack placement, and access to partial bundles deserve attention before row positions are fixed.

(505) 436-7469

Cantilever Storage Rack Planning Around Receiving

We look at what happens between unloading and final putaway. A bundle may need inspection, separation, or repacking before it reaches an arm level. Leaving space for that work can prevent long stock from becoming an obstruction between receiving doors and the storage face.

Warehouse Equipment & Supplies Co. has supplied and installed equipment since 1997, and we serve as a division of that company. Our planning includes how installation materials and crews can access the work area while the facility manages its receiving activity.

For cantilever racking, we ask which stock is retrieved as a whole pack and which is picked piece by piece. Those patterns influence arm elevation, material restraint, and the position of shorter remnants. The goal is accessible assigned storage, not a row that depends on moving unrelated bundles before every pick.

Follow one delivery through receiving

Allocate arms by material behavior

Agree on placement and access

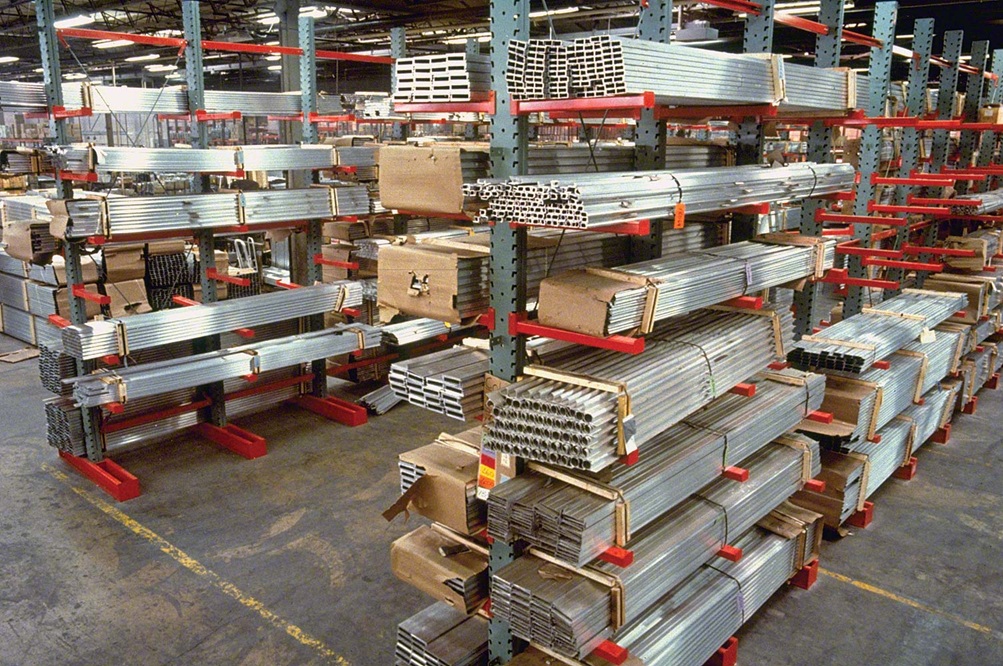

Cantilever warehouse racking holding steel tubing

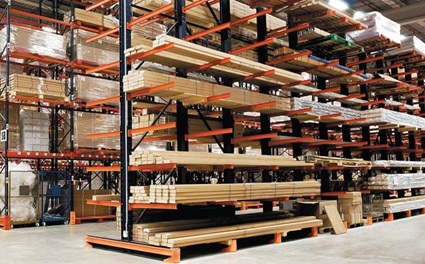

Cantilever rack storing lumber and wood products

Preserve Access During Inbound Activity

Moriarty service area

Freight and trucking

Agriculture and feed

Building supply

Auto and equipment parts

Cantilever Rack Arms for Changing Bundles

Match arm length to the depth of each supported package and its approved placement. A shallow bundle should not invite unrelated stock behind it unless the arrangement has been evaluated for access and loading. Operators need enough clearance to settle a load onto the arms and remove the forks cleanly.

Individual arm capacity must be considered with total upright loading and the actual distribution of weight. A bundle resting unevenly across supports can load one arm more heavily than a simple average suggests. Proposed arm elevations and load assignments should therefore be reviewed as a complete arrangement.

Support spacing depends on stock length and stiffness. Lumber, thin tube, heavy bar, and sheet loads do not necessarily share the same bearing requirements. Include the shortest retained pieces in the review, and address rolling pipe with suitable containment rather than expecting an open arm alone to hold every product securely.

Single-sided rows concentrate access on one face; double-sided rows require clear working approaches on both. Compare forklift turns with side-loader travel using the longest carried material. Indoor storage and outdoor yards also call for different exposure decisions, including wind and heat. Selective pallet rack can serve boxed fittings separately, although its front columns interrupt the continuous opening useful for long stock.

Follow one delivery through receiving

Allocate arms by material behavior

Agree on placement and access

Call (505) 436-7469

Cantilever Racking From Delivery to Assigned Position

Follow one delivery through receiving

Identify where a long bundle is unloaded, checked, opened, and moved into storage. Keep these temporary handling positions distinct from truck circulation so a receiving surge does not erase access to the proposed rows.

Allocate arms by material behavior

Provide lengths, package depths, weights, and the sizes left after picking. Review support locations and individual ratings, then separate stock that needs another bearing arrangement or containment method from material suited to open arms.

Agree on placement and access

Review the row plan against active receiving routes before installation coordination. Establish load identification and assigned positions so operators can return partial packs without blocking the face needed for the next inbound bundle.
