Can dated beverages use these lanes?

Yes, when your rotation policy allows LIFO within a lane. Separate batches into identified lanes and select the appropriate lane first; products demanding strict first-in, first-out access may need another storage method.

Will a mid-clear building accept additional levels?

Only if measured height, loaded pallets, cart geometry, and handling clearances allow them. Review frame height and beam spacing together before counting another level as usable capacity.

Should every flavor receive a six-deep lane?

No. Small quantities can strand positions behind an assigned flavor. Compare typical pallets per SKU with shallower configurations and retain selective positions for the smallest inventories.

Can existing uprights carry the cart system?

Possibly, but only after the connections and structural arrangement are verified. Identify the existing components and intended level loads first; some installations cannot be converted to this storage method.

Pushback Rack system inside a New Mexico warehouse

Albuquerque, New Mexico

Pushback Rack in Albuquerque, NM

Pushback rack in Albuquerque should fit the inventory profile and the building envelope together. For food and beverage distribution in Westside Industrial, reserve storage must leave receiving room; near the North I-25 Corridor, the same planning exercise should account for dispatch staging rather than treating every open area as rack space.

A pushback pallet rack holds pallets on nested carts that travel along inclined rails. Loading a new pallet moves the stored loads rearward; removing the front pallet lets the remaining carts advance under gravity. Loading and unloading share one aisle, with last-in, first-out access inside each lane.

(505) 436-7469

Pushback Rack Planning for Mixed Buildings

We compare repeat pallet quantities with the number of active SKUs before proposing deeper lanes. A broad beverage assortment may need more lane faces than a narrow reserve program. Fewer aisles can increase storage density, but empty positions behind a nearly depleted SKU still consume assigned space.

Supplying and installing since 1997, the parent organization Warehouse Equipment & Supplies Co. brings that experience to our division. We manage installation crews and discuss delivery access, work boundaries, and retained receiving areas while the arrangement is still being developed.

Our pushback rack review distinguishes older mid-clear buildings from taller warehouse shells. Frame height alone does not establish usable storage: beam spacing, loaded pallet height, cart geometry, and handling clearance determine which levels actually fit. We ask for measured conditions instead of assuming neighboring facilities share dimensions.

Map reserve demand

Measure each load

Balance height and access

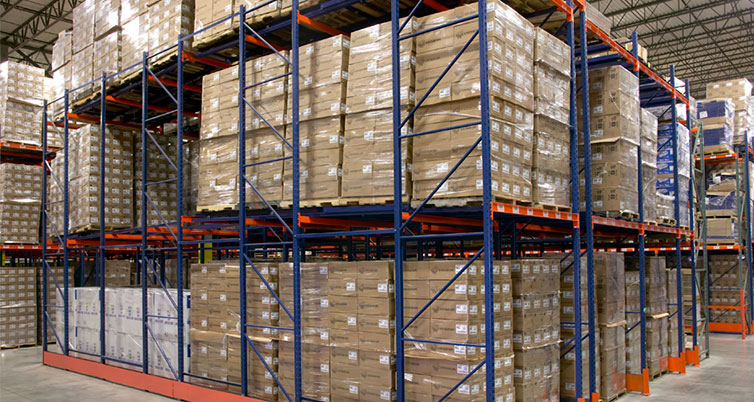

High-density pushback rack lanes loaded with pallets

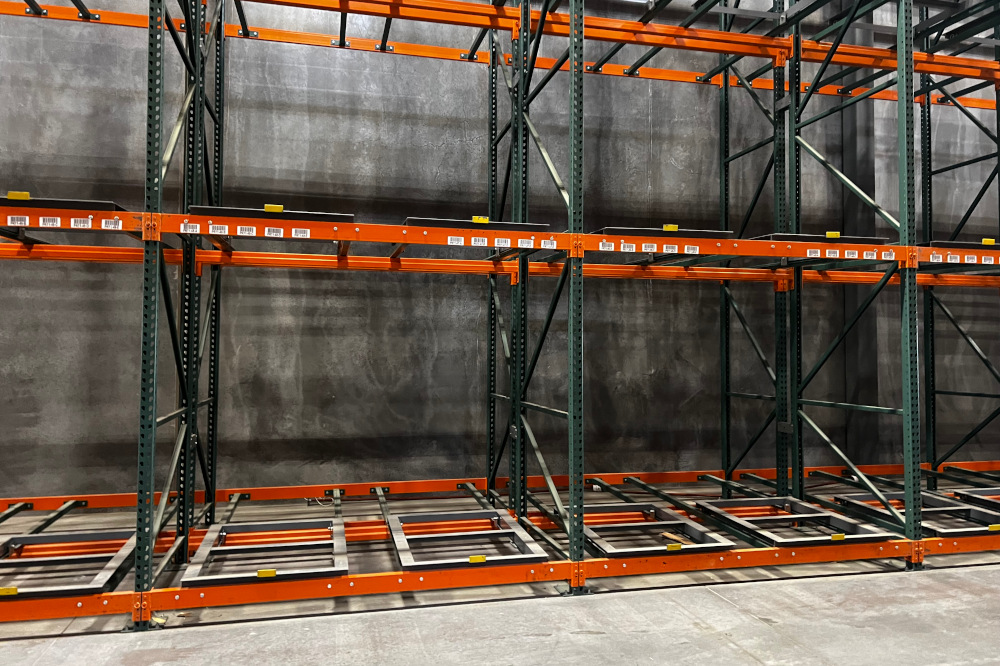

Pushback pallet racking showing cart rails and load beams

Protect the Shared Working Aisle

Albuquerque service area

Aerospace and defense

Film and production logistics

Food and beverage distribution

Third-party logistics

Pushback Rack Cart and Capacity Details

Common configurations store pallets 2–6 deep, depending on the selected system. Lane depth should follow sustainable pallets per SKU, not the largest delivery ever received. Several shallower lanes can preserve access to separate flavors, packages, or lots that would otherwise compete for one retrieval face.

Capacity must be checked for the beam pair per level and the complete supporting frame arrangement. Include every pallet carried by that level, the cart system, and the specified load distribution. Changing beam spacing or frame height can alter the structural assessment; a beam label alone cannot settle suitability.

Selective rack gives direct access to individual pallets and suits fragmented inventory. Drive-in storage can offer deep blocks but requires the truck to enter storage lanes. This cart arrangement keeps forklift work at the face, while still restricting access to pallets behind the front load.

Existing rack connections need an identified manufacturer, component information, and a compatibility assessment before any conversion is considered. Not every rack is convertible. Connector appearance is insufficient evidence, and added rails or carts must form an assessed assembly rather than an improvised combination of parts.

Map reserve demand

Measure each load

Balance height and access

Set the handling rules

Call (505) 436-7469

Pushback Rack Layout Review

Map reserve demand

Provide normal and peak pallet counts by item, plus batch restrictions. We separate repeat reserve stock from short runs so lane assignments support actual picking decisions rather than a theoretical fully occupied layout.

Measure each load

Record footprint, weight range, overhang, and pallet underside construction. Cart support and rail travel depend on the load interface; mixed pallet formats need evaluation before they are assigned to a common lane.

Balance height and access

Compare level spacing with roof obstructions and truck lift capability. Mark the shared operating aisle and receiving buffers so additional lane depth does not remove the maneuvering room needed at the storage face.

Set the handling rules

Coordinate installation through managed crews, then review loading sequence and controlled retrieval practices. Operators should understand lane limits, keep people clear of moving carts, and report abnormal travel rather than force a hesitant load.
